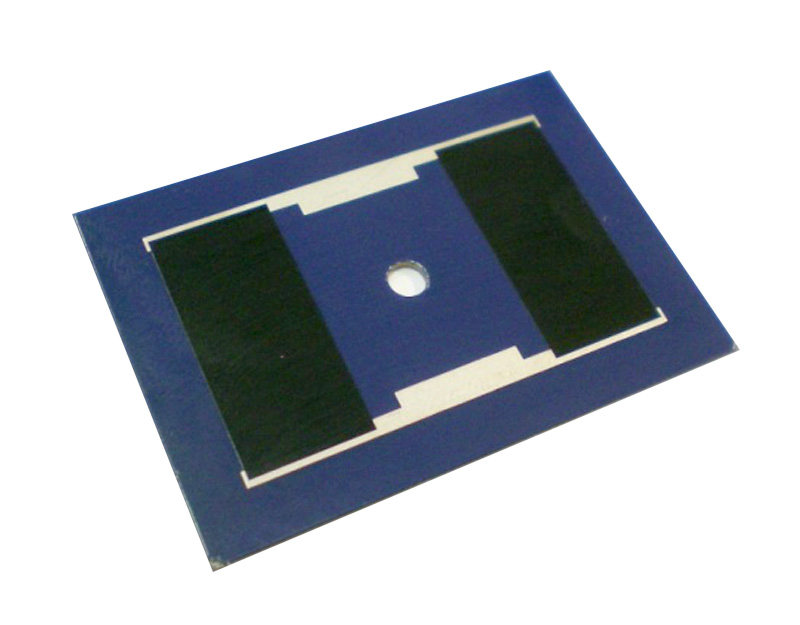

CUSTOM
THICK FILM
HEATERS

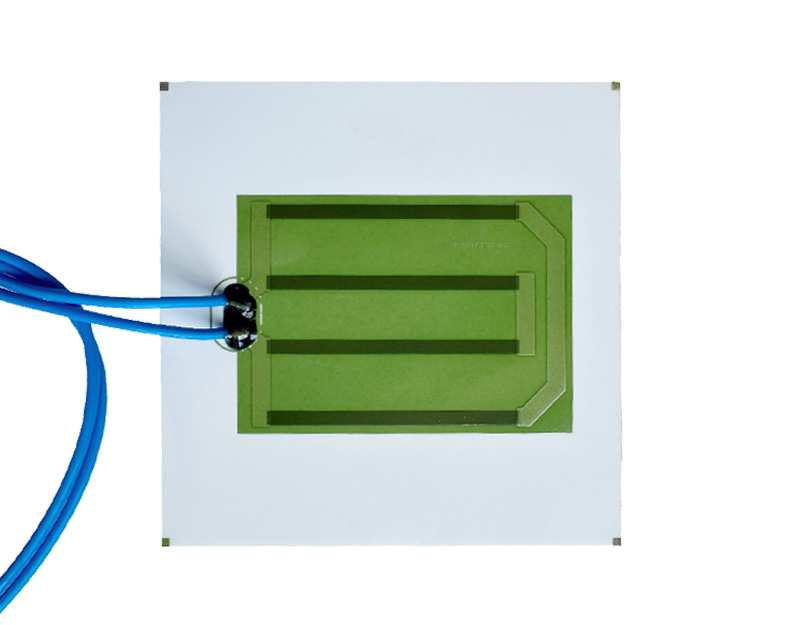

Characterized by precise heat control for high-temperature applications up to 1000°C, thick film heaters are manufactured according to customer specifications and can be customized in terms of size, power, and possible interconnections (faston, cable, connectors).
They offer low thermal inertia, low leakage current, and excellent dielectric properties.
This configuration is ideal where the following are required:
Uniform surface temperatures
Resistance to humidity and chemicals
High heat resistance (up to 1000 °C)
Compact spaces and small masses
High heat transfer speed (up to 50 °C/s)
APPLICATIONS
MEDICAL
Blood bag heating
Medical
Ionizers
Medical
Sterilizers
SAFETY
Camera defrosters
FOOD
Tray food heating
PRINTING
3D printers
INDUSTRIAL
Water heating
Industrial
Packaging line heaters
TRANSPORTS
Motor heating

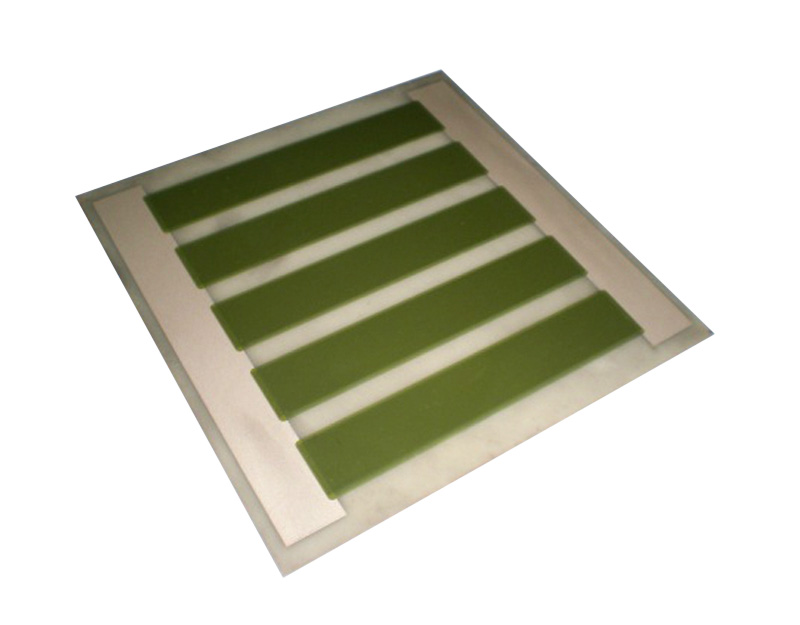

ALUMINA (AL₂O₃) HEATING PLATES
- Maximum temperature: 800 °C – 1000 °C
- Maximum power density: 11.6 W/cm²
- Thermal conductivity: 35 W/mK
- Insulation: > 15 KV/mm
- TCR: < 150 ppm/ °C
- Substrate thickness: 0.5 mm – 3 mm
- Typical maximum dimensions: 140 mm x 125 mm
ALUMINUM NITRIDE (AlN) HEATING PLATES
- Maximum temperature: 1000 °C
- Maximum power density: 155 W/cm²
- Thermal conductivity: 220 W/mK
- Insulation: > 15 KV/mm
- TCR: < 150 ppm / °C
- Substrate thickness: 0.5 mm – 3 mm
- Typical maximum dimensions: 140 mm x 125 mm
Motor braking resistor
STAINLESS STEEL HEATING PLATES
(AISI SERIES 300 OR 400)
- Maximum temperature: 650 °C
- Maximum power density: 31 W/cm²
- Insulation: > 1250V AC with dielectric thickness > 75 µm
- TCR: 300 – 3000 ppm/ °C
- Substrate thickness: 1 mm – 3 mm
- Typical maximum dimensions: 140 mm x 125 mm
Motor braking resistor

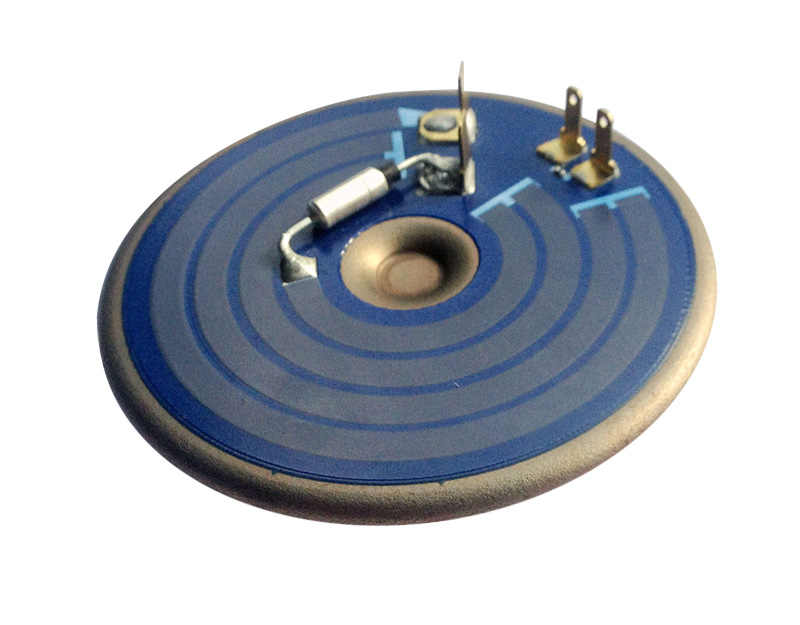

1500 W heater for coffee machine

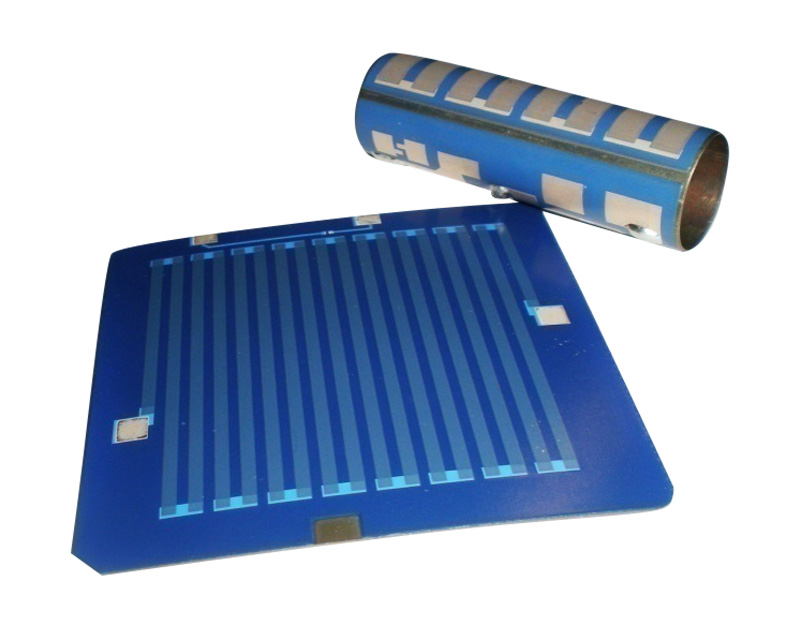

Planar and tubular resistors
